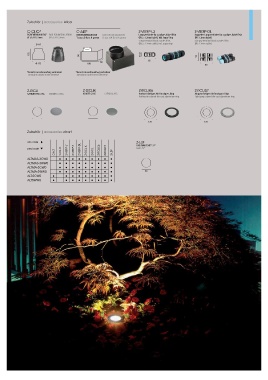

Page 120 - Becker Licht - Outdoor technisch

Zubehör | accessories: Altea
C-CLIO* C-ALT* Z-VERIP-L2 Z-VERIP-DL
BODENEINBAUDOSE BOX FOR INSTALLATION BODENEINBAUDOSE BOX FOR INSTALLATION Längsverbinder für 3 poliges Kabel IP68 doppelter Längsverbinder für 3 poliges Kabel IP68
Ø 175 H 152mm Ø 175 H 152mm T 100 x B 80 x H 90mm D 100 x W 80 x H 90mm (Ø5,5÷12mm Kabel), inkl. Aqua-Stop (Ø7÷12mm Kabel)
2 way terminal block 3 poles IP68 3/4 way terminal block 3 poles IP68
(Ø5,5÷12mm cable), incl. aqua-stop (Ø7÷12mm cable)
Ø 117
152 90 Ø 22 54
65
80
Ø 175 100
80
*bereits im Lieferumfang enthalten! *bereits im Lieferumfang enthalten!
already included in the delivery! already included in the delivery!

Z-GCLI Z-GCLIK Z-RCLI06 Z-RCLI07
SATINIERTES GLAS SATINED GLASS KLARES GLAS CLEAR GLASS Anthrazit farbiger Alu-Druckguss Ring Alugrau farbiger Alu-Druckguss Ring
Anthracite colored die-cast aluminium ring Light grey colored die-cast aluminium ring

120 120

Zubehör | accessories chart

acc. code Z-L3F
LINSENAUFSATZ 32°
prod. code Z-VERIP-L1 Z-VERIP-DL LENS 32°
C-ALT C-CLIO Z-VERIP-T Z-GCLIK Z-GCLI Z-RCLI06 Z-RCLI07 Z-L3F
ALTMAS-3CW0 ● ● ● ● ● ● ● ● ●
ALTMAS-3WW0 ● ● ● ● ● ● ● ● ●
ALTMA-3CW0 ● ● ● ● ● ● ● ● ●
ALTMA-3WW0 ● ● ● ● ● ● ● ● ● 50
ALT-5CW0 ● ● ● ● ● ● ● ● ●
ALT5WW0 ● ● ● ● ● ● ● ● ●

125
