P. 194

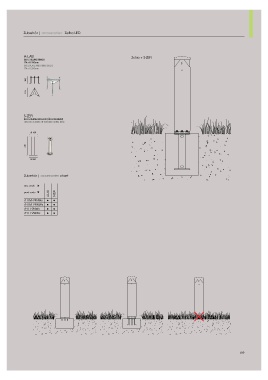

Zubehör | accessories: Zefro LED
A-LAU Zefro + S-ZEFI
BEFESTIGUNGSANKER
174 x H 200mm
BASE PLATE AND FIXING BOLTS
174 x H 200mm
200
174
S-ZEFI
BEFESTIGUNGSBOLZEN (FÜR ERDEINBAU)
HIGH RESISTANCE IN-GROUND FIXING BASE
Ø 180
400
Ø 220
Zubehör | accessories chart
acc. code
A-LAU S-ZEFI
prod. code
ZEFIM-19NWx ● ●
ZEFIM-19WWx ● ●
ZEFI-19NWx ● ●
ZEFI-19WWx ● ●
Correct Fixing Method Correct Fixing Method Incorrect Fixing Method
Bollard fxed on plinth + plug Bollard fxed on plinth + fxing bolts Do not fx the bollard directly on the ground
199
