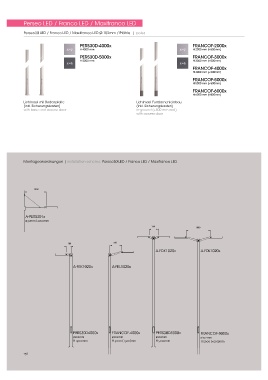

P. 151
Perseo LED / Franco LED / Maxifranco LED
Perseo30 LED / Franco LED / Maxifranco LED Ø 102mm / Pfähle | poles
PERS30D-4000x FRANCOF-2000x
H 4000 mm H 2000 mm (+500mm)
PERS30D-5000x FRANCOF-3000x
H 5000 mm H 3000 mm (+500mm)
FRANCOF-4000x
H 4000 mm (+500mm)
FRANCOF-5000x
H 5000 mm (+500mm)
FRANCOF-6000x
H 6000 mm (+800mm)
Lichtmast mit Bodenplatte Lichtmast Fundamenteinbau
(inkl. Sicherungskasten) (inkl. Sicherungskasten)
with base and access door in-ground (+500 mm root)
with access door
Montageanordnungen | installation scheme: Perseo30 LED / Franco LED / Maxifranco LED
1000
A-PERS301x
ø30mm L1000mm
360
1000
180 500
A-FDK1020x A-FDL1020x
A-FEK1020x A-FEL1020x
PERS30D4000x FRANCOF-4000x PERS30D5000x FRANCOF-5000x
ø102mm ø102mm ø102mm ø102mm
H 4000mm H 4000 (+500)mm H 5000mm H 5000 (+500)mm
156
156
